| Processor |
| Number | 1 Processor |
| Architecture | Type: Intel Xeon S4314 Processor Series |
| CPUs | One Intel 2.4GHz 16-Core Xeon S4314, 135W, 24MB L3 cache
|
| Main Memory |
| Capacities | - 32 DIMM Slots (8 DIMM slots are populated (256GB), expandable to 16 DIMM slots, 512GB)
- DIMM Size and Type:32GB: DDR4-3200 Registered DIMM
- Maximum Memory Capacity: 512GB using 32GB DIMMs x 16 slots
- Minimum Memory Capacity: 256GB using 32GB DIMMs x 8 slots
|
| Standard I/O |
| Network | Four 10GBASE-T Ethernet ports (RJ-45 connector) expandable up to 12 x 10GBase-T ports or Two 10/25 GbE ports (SFP28) expandable up to 6 10/25 GbE ports (mixing NIC types is supported) |
| Network Management | One 10/100/1000Base-T Network Management (NET MGT/RJ-45 connector) port |
| Serial Management | One serial console (SER MGT/RJ-45 connector) port, used to connect to ILOM service processor. |
| USB | Rear: 1 USB 3.0 Port |
| I/O Expansion | Ten PCIe 4.0 slots- PCI-E slot 6: Dual Port 10/25GbE (SFP28) Ethernet Adapter or Quad Port 10GBase-T Adapter
- PCI-E slot 7: Dual Port 10/25GbE (SFP28) Ethernet Adapter or Quad Port 10GBase-T Adapter (Optional)
- PCI-E slot 8: Dual Port 10/25GbE (SFP28) Ethernet Adapter or Quad Port 10GBase-T Adapter (Optional)
Note: No additional PCIe cards can be added in the non-mentioned slots.
|
| Internal Mass Storage |

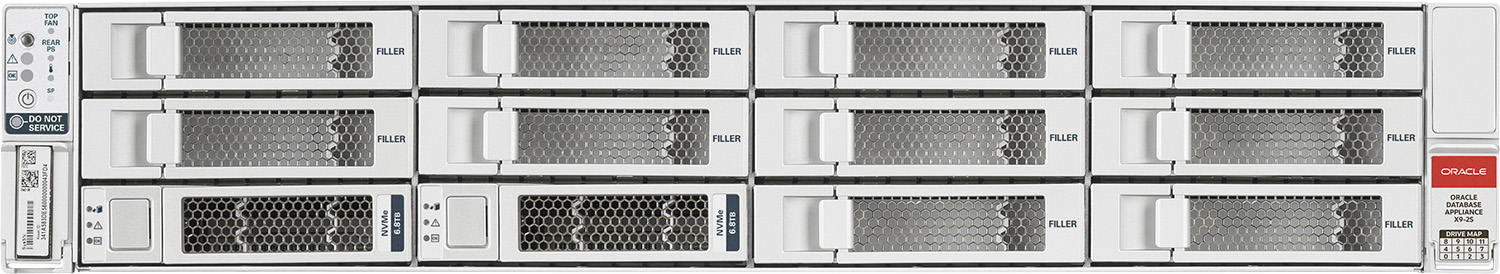

| Disks | Twelve front-accessible and hot-swappable 2.5" disk bays. Two internal 240GB M.2 SSD's (mirrored) per server, for Operating System and Oracle Database software.
Drive Type
| Density
| Speed
| Form Factor
| SATA-3
| 240GB
| Flash Solid State
| M.2
| NVMe PCIe 3.0
| 6.8TB
| NVMe Solid State
| 2.5"
|
|
| Power Supplies and Fans |
- Two 1200W hot-swappable and redundant power supplies and 4 hot-swappable and Redundant Fan Modules each with 2 fans.
- Cooling is front to back.
|
| Environment |
| AC power | Rated line voltage: 100 to 240 VAC.
Rated input current 100 to 127 VAC 7.2 A and 200 to 240 VAC 3.4 A. |
| Temperature | Operating: 5° C to 35° C (41° F to 95° F)
Nonoperating: -40° C to 70° C (-40° F to 158°F) |
| Humidity | Operating: 10% to 90% relative humidity noncondensing.
Nonoperating: Up to 93% relative humidity noncondensing |
| Altitude | Single, non-rack system:
Operating: Up to 3,000 m (9,840 ft.) maximum operating temperature is derated by 1° C for every 300 m (985 ft) above 900 m (2,952 ft).
Nonoperating: Up to 12,000 m (39,370 ft.) |
| Acoustic Noise Emissions | 7.0 Bels A-weighted operating, 7.1 Bels A-weighted idling
|
Regulations
Meets or exceeds the following requirements: |
| Safety | UL/CSA-60950-1, EN60950-1-2006, IEC60950-1 CB scheme with all country differences. |
| EMC | Emissions: FCC CFR 47 Part 15, ICES-003, EN55022, EN55032, KN32, EN61000-3-2 and EN61000-3-3. |
| Immunity | EM55024, KN35 |
| Other | Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU, Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC, Low Voltage Directive 2006/95/EC, and EMC Directive 2004/108/EC |
| Certifications | - North America Safety (NRTL)
- European Union (EU)
- International CB Scheme
- BIS (India)
- BSMI (Taiwan)
- RCM (Australia)
- CCC (PRC)
- MSIP (Korea)
- VCCI (Japan)
- Morocco
- Republic of Srpska
|
| European Union Directives | - 2014/35/EU Low Voltage Directive
- 2014/30/EC EMC Directive
- 2011/65/EU RoHS Directive
- 2012/19/EU WEEE Directive
|
| Dimensions and Weight |
| Height | 86.9 mm (3.42 in.) 2U. |
| Width | 445.0 mm (17.5 in.). |
| Depth | 759.4 mm (29.9 in.). |
| Weight | Maximum: 28.6 kg (63 lbs.) fully populated. |
| Rack Mounting |
Included ODA X9-2S Rack Installation Kits
| - Rack-mount Slide Rail Kit.
- Cable Management Arm.
|
