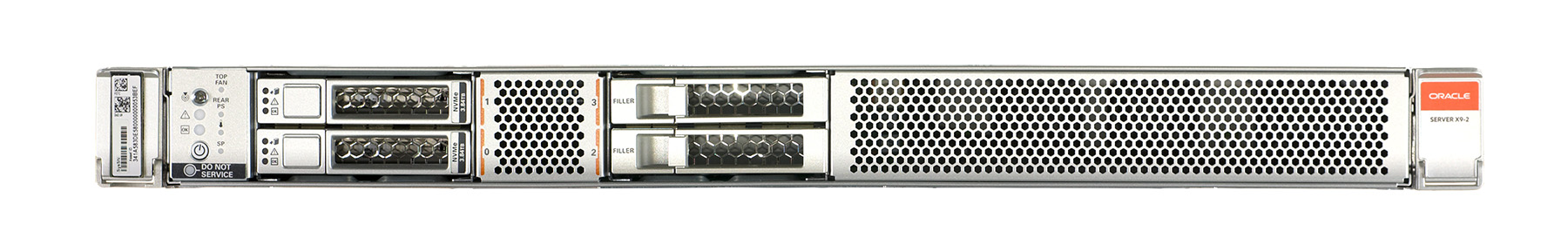

Oracle Server X9-2

Processor
Number	1 or 2 Processors
CPUs	Intel Xeon 5318Y, 24 core, 2.1 GHz, 165W Intel Xeon 8358, 32 core, 2.6 GHz, 250W Intel Xeon 6354, 18 core, 3.0 GHz, 205W Intel Xeon 4314, 16 core, 2.4 GHz, 135W
Main Memory
Capacities	16 DIMM slots per processor, 32 DIMM slots total RDIMM Size and Type: 32GB: DDR4-3200 Registered DIMMs, 64GB: DDR4-3200 Registered DIMMs Minimum Memory Capacity: 2 DIMMs per installed CPU is the minimum requirement. Maximum Memory Capacity: 2TB using 64GB DIMMs in a 2 CPU configuration
Standard I/O
Network	One 100/1000BASE-T RJ-45 Gigabit Ethernet (GbE) port, labeled NET 0 One 10/25/50/100/200 Gbs OCP V3 Network Interface Card (NIC) with two QSFP ports
Network Management	One 100/1000Base-T RJ-45 Oracle Integrated Lights Out Mangager (ILOM) service processer (SP) network management (NET MGT) Ethernet port
Serial Management	One serial console (SER MGT/RJ-45 connector) port.
USB	1 USB 3.0 Port - rear panel
I/O Expansion	Three PCIe Gen4 slots: PCI-E slot 1: x16 electrical PCI-E slot 2: x16 electrical PCI-E slot 3: x16 electrical Note: Slot 1 is nonfunctional in single processor systems
Internal Mass Storage
Disks	Oracle Server X9-2 storage drive configuration can comprise solid state drives (SSDs). The configuration includes: • Up to four 2.5-inch hot-pluggable NVM-Express (NVMe) SSDs • Two internal M.2 Gen3 SATA or PCIe Gen3 NVMe flash SSDs
Power Supplies and Fans
Power Supplies	Two 1200W A269.2 hot-swappable and highly redundant power supplies
Cooling Fans	Four hot-swappable fan modules, each fan module contains one pair of 40x40x56mm counter-rotating fans. Cooling is front to back.
Environment
Power Consumption	Online power calculator
Voltage (nominal)	100 - 127 VAC; 200-240 VAC
Input Current (maximum)	10.0A @ 100-127VAC; 7.0A @ 200-240 VAC
Frequency (nominal)	50/60Hz (47 to 63 Hz range)
Heat Output	11,600 BTU/hr
Temperature	Operating: 5° C to 35° C (41° F to 95° F), Optimal 21° C to 23° C (69.8° F to 73.4° F) Nonoperating: -40° C to 68° C (-40° F to 154°F) Note: Maximum ambient operating temperature is derated by 1 degree C per 300 meters of elevation beyond 900 meters, up to a maximum altitude of 3000 meters.
Humidity	Operating: 10% to 90% noncondensing short term -5° C to 55° C (23° F to 113° F) Nonoperating: Up to 93% noncondensing 35° C (95° F) maximum wet bulb
Altitude	Operating: Up to 3,000 m (9,840 ft.) Note: In China markets, regulations may limit installations to a maximum altitude of 2000 meters (6562 ft). Nonoperating: Up to 12,000 m (39,370 ft.)
Acoustic Noise Emissions	Nidec - 50% PWM: 7.9 Bels; 100% PWM: 9.2 Bels Delta - 50% PWM: 7.7 Bels; 100% PWM: 9.0 Bels
Vibration	Operating: 0.15 G (z-axis); 0.10 G (X-, y-axes), 5-500Hz swept sine; IEC 60068-2-6 Test FC Nonoperating: 0.5 G (z-axis); 0.25 G (x-, y-axes), 5-500Hz swept sine; IEC 60068-2-6 Test FC
Shock	Operating: 3.5 G, 11 ms half-sine; IEC 60068-2-27 Test Ea Nonoperating: Roll-off: 1.25-inch roll-off free fall, front to back rolling directions Threshold: 13-mm threshold height at 0.65 m/s impact velocity ETE-1010-02 Rev A
Regulations Meets or exceeds the following requirements:
Safety	UL/CSA-60950-1, EN60950-1, IEC60950-1 CB scheme with all country differences. UL/CSA 62368-1, EN 62368-1, IEC 62368-1 CB scheme with all country differences.
EMC	Emissions: FCC 47 CFR 15, ICES-003, EN55022, EN55032, KN32, EN61000-3-2 and EN61000-3-3.
Immunity	EN 55024, KN35
Certifications	North America Safety (NRTL) European Union (CE) International CB Scheme BIS (India) BSMI (Taiwan) CCC (PRC) EAC (EAEU including Russia) KC (Korea) RCM (Australia) VCCI (Japan) UKCA (United Kingdom)
European Union Directives	2014/35/EU Low Voltage Directive 2014/30/EU EMC Directive 2011/65/EU RoHS Directive 2012/19/EU WEEE Directive 2009/125/EC Ecodesign Energy Related Products Directive
Dimensions and Weight
Height	42.6 mm (1.7 in.) 1U
Width	483.2 mm (19.02 in.)
Depth	772 mm (30.04 in.)
Weight	Maximum: 20.41 kg (45 lbs.) fully populated.
Rack Mounting
Included Oracle Server X8-2 Rack Mount Kit	Tool-less rack mounting slide rail kit Mounting brackets Screws Rack mounting template
Service Clearance	Front: 123.2 cm (48.5 in.) Rear: 91.4 cm (36 in.)
